Laser Cleaning for Heavy Machinery Rust and Paint Removal
Heavy machinery is built to work hard, but its surfaces do not always stay in good condition.
Excavators, loaders, mining equipment, industrial frames and steel structures can accumulate heavy rust, old paint, oil residue and multiple coating layers over years of operation. When these machines are refurbished, surface preparation often becomes one of the most time-consuming steps.
Grinding works, but it is labor-intensive and removes material through physical contact. Chemical stripping can remove old coatings, but it also creates chemical waste and additional handling requirements.
Laser cleaning offers a different way to approach the job.

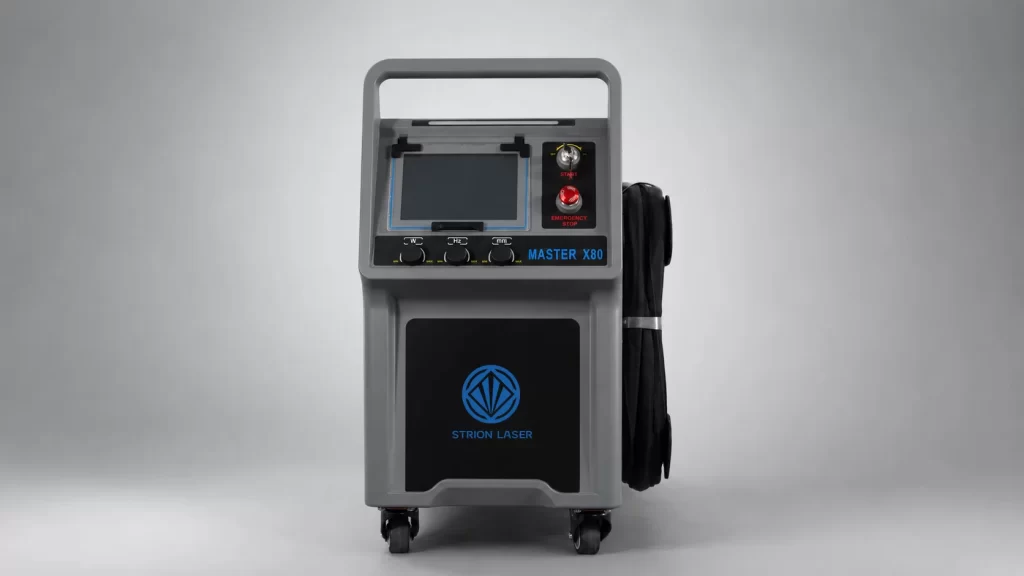

The STRION LASER Master X80 is a high-power handheld laser cleaning machine developed for demanding industrial cleaning applications, including rust removal, paint removal and surface preparation.
The important point is not simply that a laser can remove rust.
The real value is whether it can make the entire refurbishment process cleaner, more controllable and less dependent on heavy manual work.
Why Heavy Machinery Refurbishment Is Difficult
Cleaning a large machine is very different from cleaning a small metal component.
A heavy piece of equipment may have large flat areas, corners, welds, reinforcement ribs and difficult-to-reach sections. The surface condition can also vary significantly from one area to another.
One section may have light surface rust. Another may have thick corrosion and several layers of old paint.
This creates three common problems.
Grinding Takes Time and Labor
Mechanical grinding is still widely used because it is simple and familiar.
However, large machinery can require hours of manual work. Operators need to move the grinder across the surface while trying to maintain a consistent finish.
There is also another issue: grinding removes material.
For general fabrication this may not always matter. For refurbishment, however, preserving the original metal surface is often important.
This is one reason a non-contact cleaning process can be attractive.
Chemical Stripping Creates Another Process to Manage
Chemical paint stripping can be effective for certain coatings, but removing the paint is not the end of the process.
The workshop may still need to deal with chemical residues, wastewater, contaminated materials and additional surface cleaning.
For companies working under increasingly strict environmental and workplace requirements, these additional steps can become a real operating cost.
Laser cleaning removes the need for chemical stripping agents in the cleaning process.
How Does a Laser Cleaning Machine Remove Rust and Paint?
A laser cleaning machine uses controlled laser energy to interact with the unwanted material on the surface.
Rust, paint and other contaminants absorb laser energy differently from the underlying metal. With appropriate process parameters, the laser can remove the surface layer while keeping the heat input to the substrate under control.
Unlike grinding, there is no abrasive wheel physically wearing against the metal.
Unlike chemical stripping, there is no chemical agent used to dissolve the coating.
This makes laser cleaning a non-contact surface treatment process.
But there is an important point that should not be overlooked:
Laser cleaning is not simply a matter of increasing power.
The result depends on laser power, scanning speed, frequency, cleaning width, focus, material, coating thickness and surface condition.
That is why professional laser cleaning should be treated as a process, not just a machine specification.
Master X80 for Heavy Machinery Rust and Paint Removal
The STRION LASER Master X80 is designed for high-power industrial cleaning applications where conventional manual cleaning can be slow or difficult.
For heavy machinery refurbishment, it can be used for applications such as:
- Heavy rust removal
- Old paint removal
- Multi-layer coating removal
- Steel surface preparation
- Machinery refurbishment
- Pre-painting cleaning
- Weld and repair-area cleaning
The handheld configuration gives operators flexibility when working on large or irregular equipment.
Instead of moving the entire workpiece through a cleaning system, the operator brings the laser cleaning head directly to the surface.
For large machinery, that is a practical advantage.
Three Practical Advantages of Laser Cleaning
1. Non-Contact Rust and Paint Removal
The most obvious difference between laser cleaning and grinding is contact.
A grinder physically touches the surface. A laser cleaning machine does not need abrasive contact with the workpiece.
For refurbishment work, this can help reduce unnecessary mechanical wear and avoid removing more base material than necessary.
The objective is not to remove the metal.
It is to remove what should not be there.
2. Less Secondary Waste
Traditional cleaning methods often introduce another material into the process.

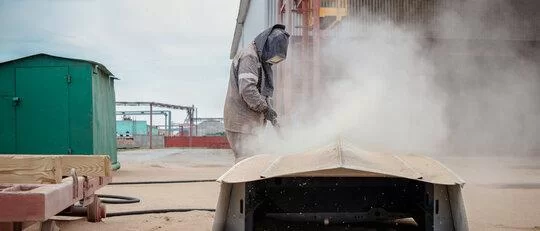

Grinding creates dust and consumes abrasive tools. Sandblasting requires abrasive media and creates spent media that must be collected.
Chemical stripping creates contaminated liquids and residues.
A handheld laser cleaning machine does not require abrasive blasting media or chemical stripping agents.
There will still be removed rust, paint particles and debris that need proper collection and workplace controls. But the cleaning process itself is much less dependent on additional consumable media.
That can simplify the overall workflow.
3. More Flexibility on Large Structures
Heavy machinery is rarely a perfectly flat surface.
Frames, brackets, welds, corners and reinforcement structures can make conventional cleaning difficult.
The handheld design of the Master X80 allows the operator to work directly on these areas.
This flexibility is particularly useful for refurbishment companies handling different types of machinery rather than running one standardized production line.
Laser Cleaning vs. Grinding, Blasting and Chemical Stripping
Laser cleaning should not be presented as a replacement for every traditional process.
Each method has its place.
| Method | Main Strength | Main Consideration |
|---|---|---|
| Mechanical grinding | Simple and familiar | Labor, dust and material removal |
| Abrasive blasting | Effective for large surfaces | Media consumption and cleanup |
| Chemical stripping | Effective on selected coatings | Chemical handling and waste |
| Laser cleaning | Non-contact and media-free | Equipment cost and process optimization |
For heavy machinery refurbishment, the right question is not always:
“Which method removes rust the fastest?”
A more useful question is:
“Which method gives us the surface we need with the least additional work?”
That includes labor, cleanup, waste handling, surface damage and preparation for the next process.
This is where laser cleaning can offer a meaningful advantage.
Why Choose STRION LASER Master X80?
The right laser cleaning equipment should always be selected according to the actual workpiece.
Before choosing a machine, users should consider:
- Substrate material
- Rust thickness
- Paint type and coating thickness
- Required cleaning width
- Cleaning speed
- Surface finish
- Working environment
- Operator experience
A sample test is often more useful than comparing power ratings on paper.
For heavy machinery, the Master X80 provides a high-power handheld solution for demanding rust and paint removal applications.
But the machine is only one part of the result.
The process parameters need to be matched to the actual material and contamination.
That is why STRION LASER recommends testing the real workpiece whenever possible.
Heavy machinery refurbishment is ultimately about more than removing rust and paint.
The workshop needs to protect the underlying metal, reduce unnecessary labor and prepare the surface properly for repair or repainting.
The STRION LASER Master X80 handheld laser cleaning machine provides a non-contact approach to rust removal, paint removal and industrial surface preparation.
For construction machinery, mining equipment, steel structures and other heavy industrial equipment, it offers an alternative to processes that rely heavily on grinding, blasting or chemical stripping.
The best way to evaluate a laser cleaner is simple:
Take the actual machine, the actual rust and the actual paint—and test the process.
That is where the real value of laser cleaning becomes clear.
