Handheld Laser Welding for Aluminum: Challenges & Solutions Explained

April 20, 2026

Handheld Laser Welding for Aluminum: Challenges & Solutions Explained

Although aluminum alloys are widely used in automotive, aerospace, sheet metal, and home appliance manufacturing for their lightweight and corrosion-resistant properties, laser welding aluminum remains one of the most challenging applications in modern fabrication.

Issues such as high reflectivity, porosity, hot cracking, unstable wire feeding, and fast heat dissipation often make it difficult to achieve consistent weld quality.

This guide explains the most common problems in handheld laser welding of aluminum and provides proven solutions based on real industrial equipment applications.

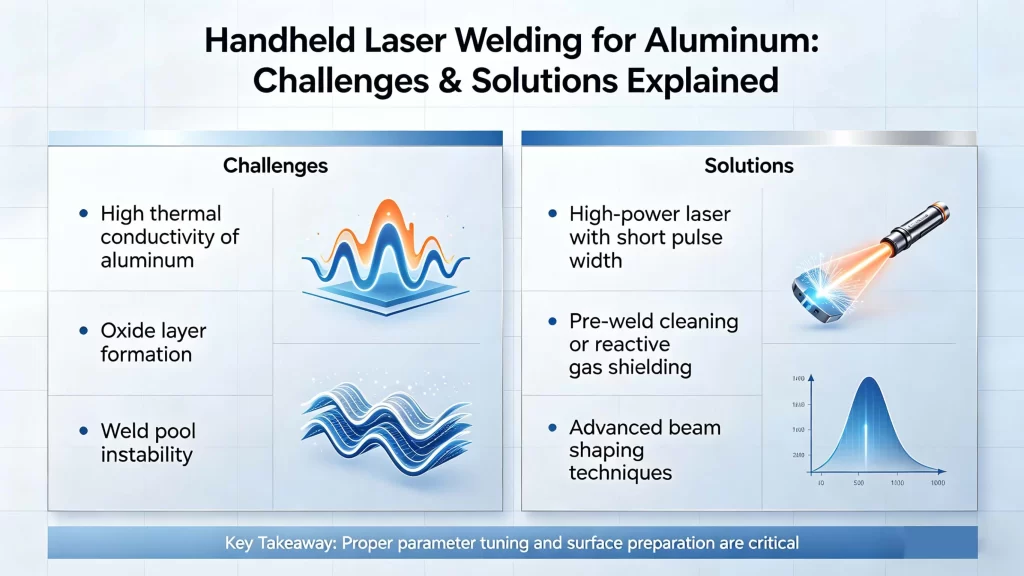

Core Challenges of Handheld Laser Welding for Aluminum

High Laser Reflectivity
Aluminum reflects nearly 90% of infrared laser energy, leading to difficult ignition, insufficient penetration, and potential damage to laser optics.
Fast Heat Dissipation
Thermal conductivity of aluminum is 3–4 times that of steel, causing unstable molten pool, incomplete fusion, and easy deformation.
Porosity and Hot Cracking
Aluminum oxide films absorb hydrogen and easily form pores; fast solidification and alloy segregation lead to hot cracking.
Unstable Wire Feeding
Soft aluminum wire is prone to buckling, jamming, and uneven feeding, resulting in spatter and poor weld formation.
Oxidation and Environmental Interference
High-temperature oxidation and humidity affect weld quality; traditional equipment struggles in harsh environments.

Effective Solutions for Handheld Laser Welding of Aluminum

1. Solve High Reflectivity and Heat Loss

Use high‑brightness single‑mode laser source to improve energy absorption.
Adopt wobble welding (circular/8‑shape) to stabilize the molten pool and improve gas escape.
Use dual‑loop refrigerant direct cooling system to maintain stable output for a long time.

2. Reduce Porosity and Prevent Cracking

Clean surface oxides, oil, and water before welding to reduce hydrogen pores.

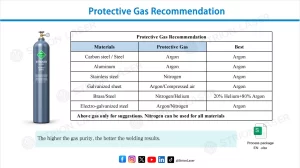

Use high‑purity argon gas protection and optimized air‑knife design.
Select Al‑Si filler wires to improve fluidity and crack resistance.

3. Stable Wire Feeding for Aluminum

Equip push‑pull wire feeder or servo-controlled wire feeder for soft aluminum wire.
Support 0.8/1.0/1.2/1.6 mm common aluminum wire diameters.
Use knob, touchscreen, and App control for precise and smooth wire feeding without stalling.

4. Stable Performance in Harsh Environments

IP53 protection level, adaptable to 95% RH high humidity.
Operating temperature range from −30°C to 60°C for stable operation indoors and outdoors.
Long‑term continuous operation for 6,000 hours without power attenuation.

STRION LASER Handheld Solutions for Aluminum Welding

Strion Laser’s LITE S Series and MASTER X Series handheld laser welders are specially optimized for aluminum welding, with 100% in‑house developed core components.

LITE S30 / S40: 220V all‑in‑one handheld laser welder, 900–1200W, ideal for 0.8–3 mm thin aluminum sheets.
MASTER X50 / X60 / X80: Industrial‑grade power for 4–8 mm thick aluminum, supporting automated welding, cutting, and cleaning.
All models feature dual‑loop direct cooling, anti‑spatter torch, quick‑change lens, and more than 20 built‑in aluminum welding processes.

handheld welding machine laser welder — The MASTER X series and LITE S series handheld laser welders

Handheld laser welding for aluminum can overcome reflectivity, porosity, cracking, and wire feeding issues through professional optical design, stable wire feeding, efficient cooling, and optimized processes. Advanced handheld laser welding equipment provides reliable, efficient, and high‑quality solutions for mass production and on‑site repair of aluminum parts.

For stable and high‑quality aluminum welding, choose handheld laser welders with single‑mode laser source, push‑pull wire feeding, dual‑loop cooling, and rich aluminum process packages.
