3000W refrigerant cooling system laser welder – China’s first with highly stable laser source, delivering deeper and higher-quality welds. A new performance benchmark.
MASTER - X Series Handheld Fiber Laser Welding Machine
Built for Industry
STR-MASTER Series Handheld Fiber Laser Welding Machine
Built for Industry
Master Series Handheld Laser Welding Machine – Engineered for industrial use, the Master Series ensures deep penetration, high welding quality, and stable power with our self-developed laser source. Featuring rich digital and I/O interfaces, it supports welding, cleaning, cutting, cladding, and automation, delivering efficiency, reliability, and versatility for modern manufacturing.
STR-MASTER Series -Built for Industry, Thick-Plate Welding
First High-Power Refrigerant Cooling Welding Machine
Small-core technology delivers high power density and strong deep penetration.
Integrated proprietary process system for advanced welding applications
10 mm penetration; 8 mm weld width
STR-MASTER Series High Stability,Multi-Purpose
All-in-One Intelligent Control
Versatile interfaces for welding, cleaning, cutting, cladding & robotics
Smart Open Ecosystem
Proprietary “MASTER” intelligent welding software, meeting diverse customization needs
Product Parameters
Hardcore Intelligent Manufacturing, Unstoppable Power!
Electrical & Performance
Environmental & Operating Conditions
Structure and Dimensions
Welding Parameters
Electrical & Performance
Items |
STR-MASTER X50 |
STR-MASTER X60 |
STR-MASTER X80 |
Rated Input Voltage | Single Phase 220V | Three Phase 380V | Three Phase 380V |
Input Power Frequency(Hz) | 50/60 | ||
Laser Power (W) | 1500 | 2000 | 3000 |
Rated Input Power (W) | 5000 | 6800 | 10500 |
Process Packages | ＞20 | ||
Welding Speed (cm/min) | 20–300 | ||
Welding Mode | Spot welding/Continuous Spot welding | ||
Environmental & Operating Conditions
Items |
STR-MASTER X50 |
STR-MASTER X60 |
STR-MASTER X80 |
Cooling System | Dual-Circuit Refrigerant Direct Cooling | ||
Operating Temperature (℃) | -30~60 | ||
Storage Temperature (℃) | -40~70 | ||
Operating Humidity (%) | 0–90 | ||
Applicable Wire Diameter (mm) | 1.0 / 1.2 / 1.6 / 2.0 (Single / Double Feed Mode) | ||
Structure and Dimensions
Items |
STR-MASTER X50 |
STR-MASTER X60 |
STR-MASTER X80 |
Output Mode | Integrated Armored Cable + Welding Torch | ||
Armored Cable Length (m) | 5m (Up to 15m) | 10m | 10m |
Dimensions (mm) | 912×420×722 | 944×470×772 | 944×470×772 |
Weight (kg) | 50 | 85 | 85 |

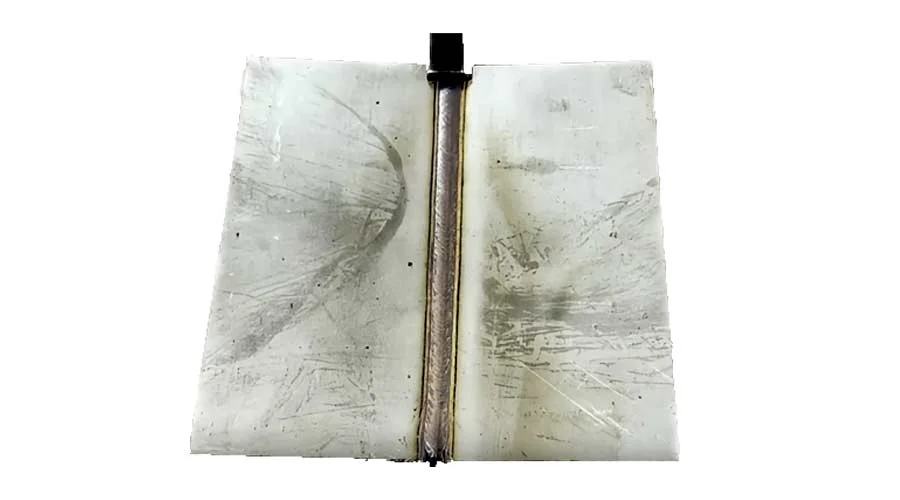

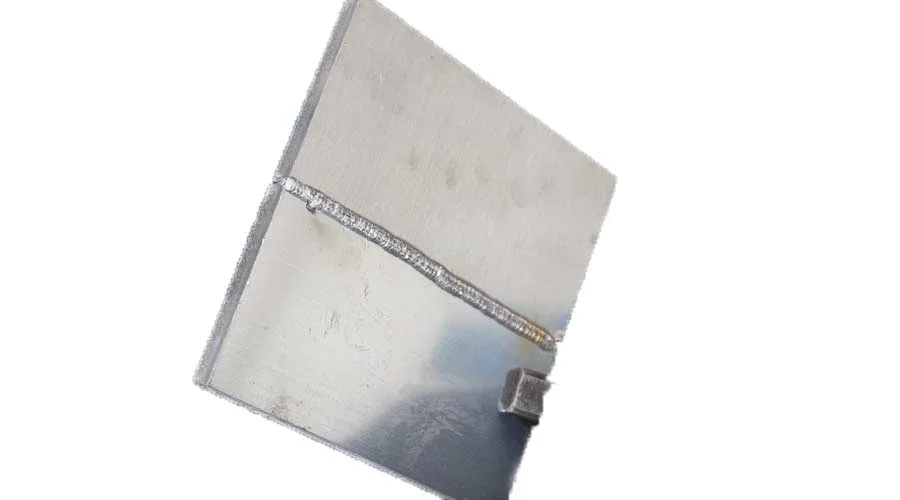

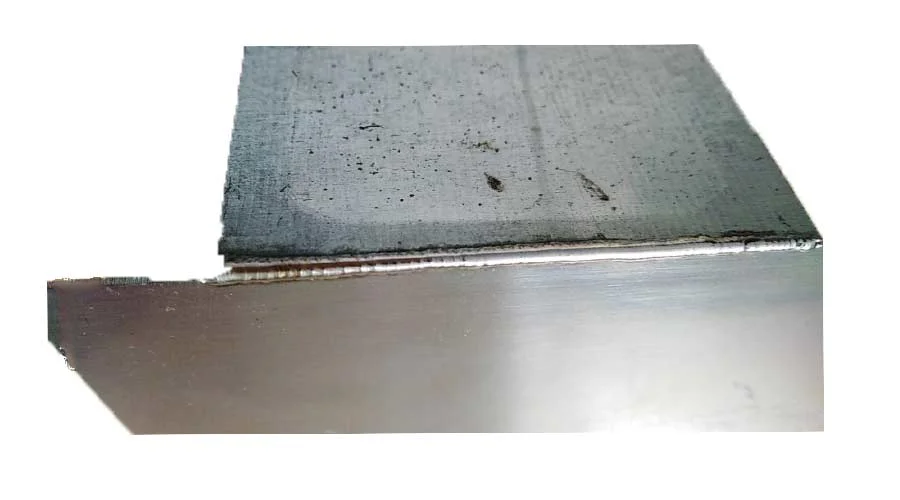

Welding Parameters

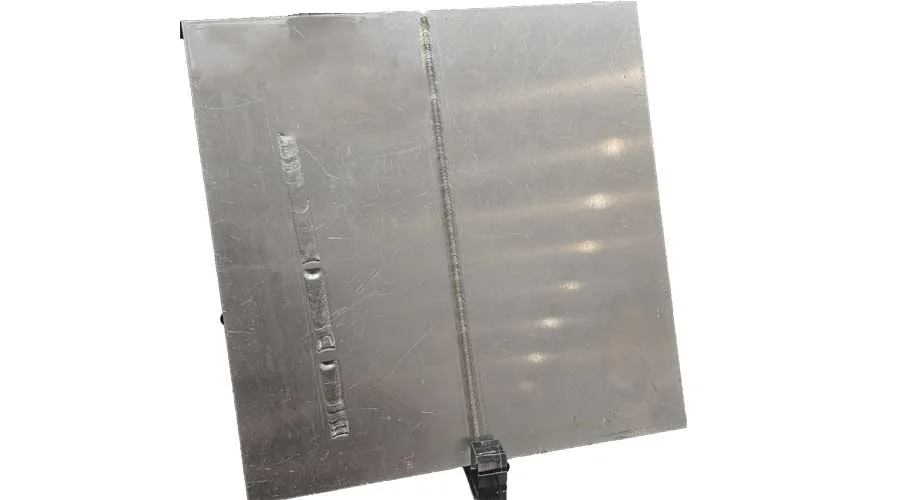

Aluminum |

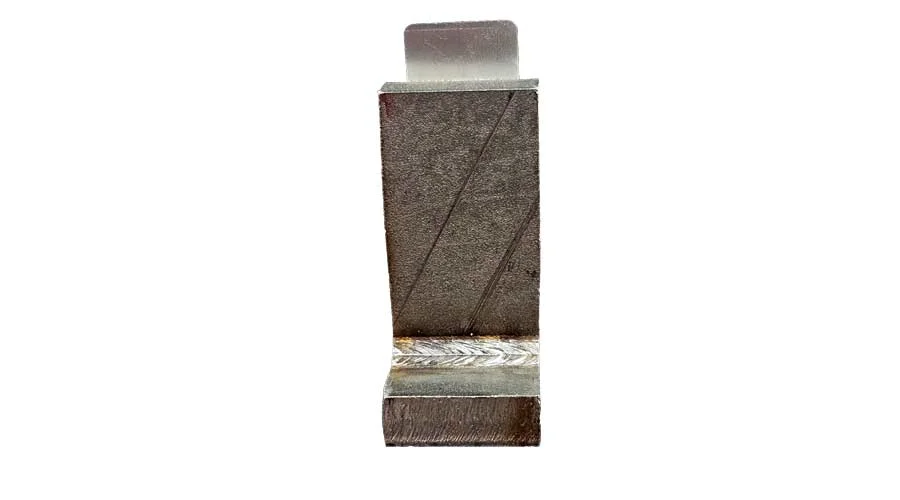

Stainless steel |

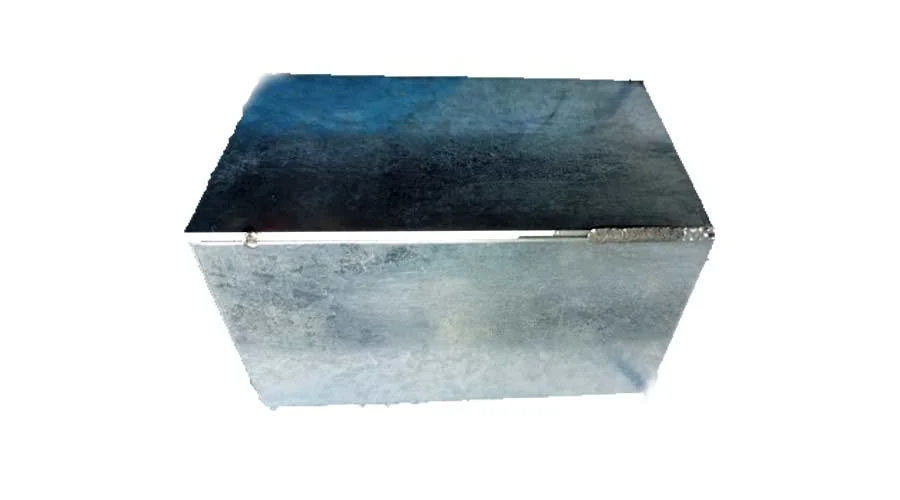

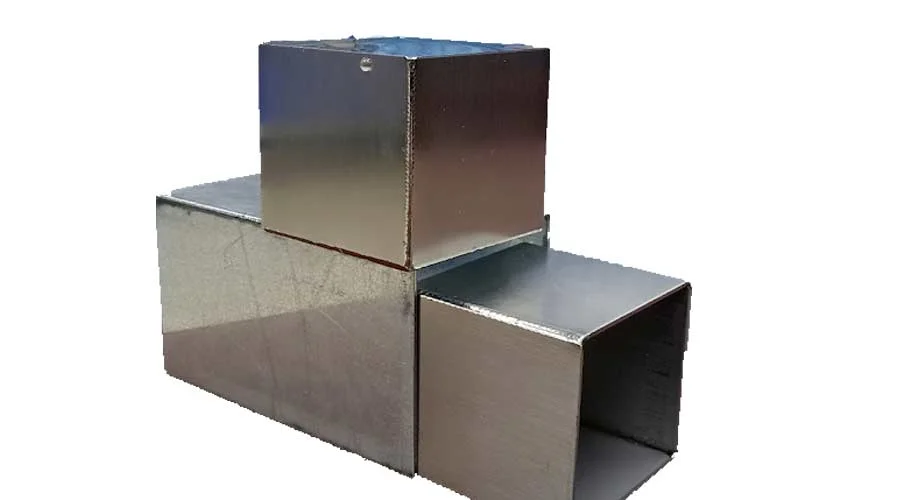

Galvanized sheet |

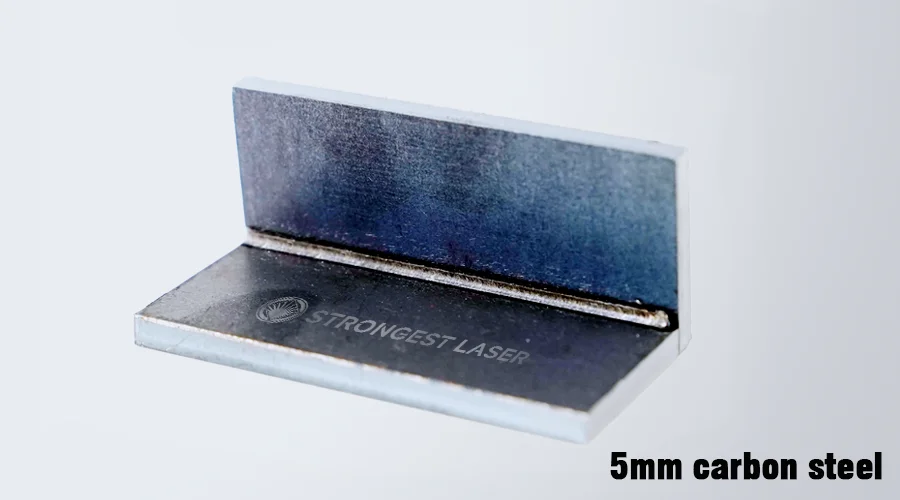

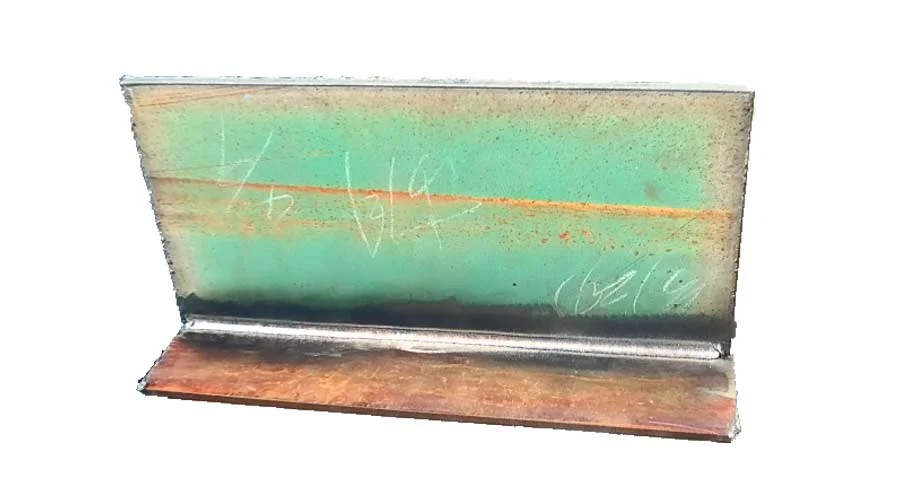

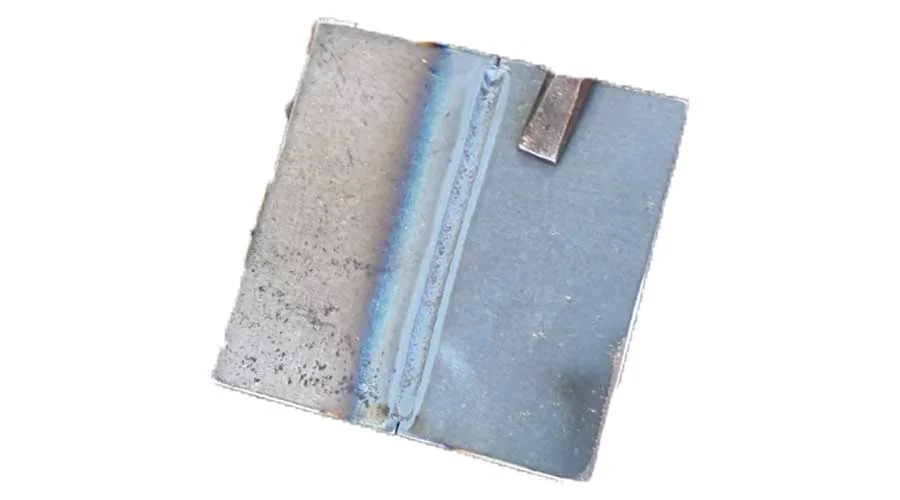

Carbon steel |
|
MASTER X50 |
5mm |
5mm |
4mm |
5mm |
MASTER X60 |
6mm |
6mm |
5mm |
6mm |
MASTER X80 |
7mm |
8mm |
7mm |
10mm |
The STR-MASTER SERIES Advantage The next generation in productivity leadership

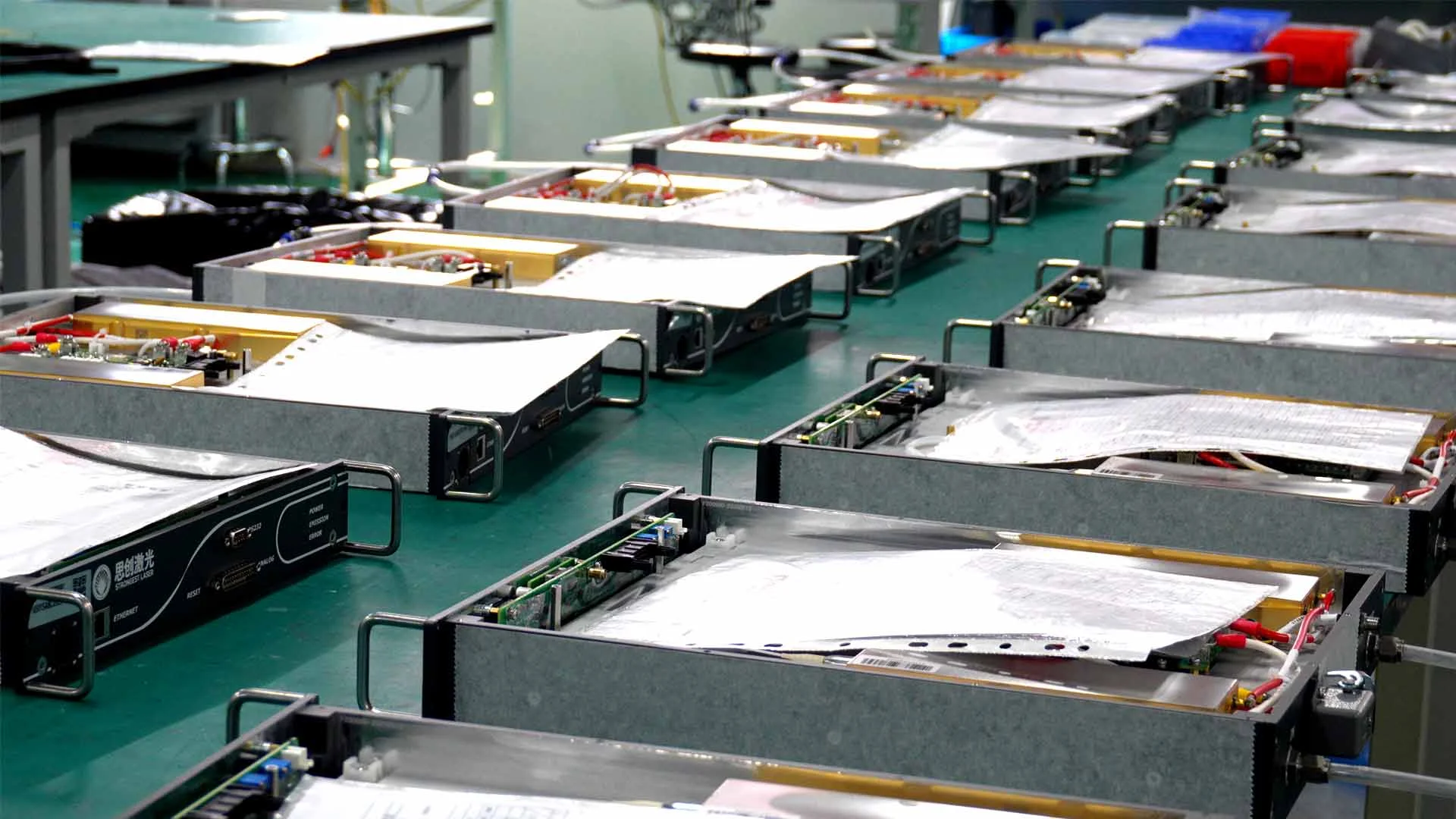

High Power Laser Source Integration Technology
Open Smart Ecosystem

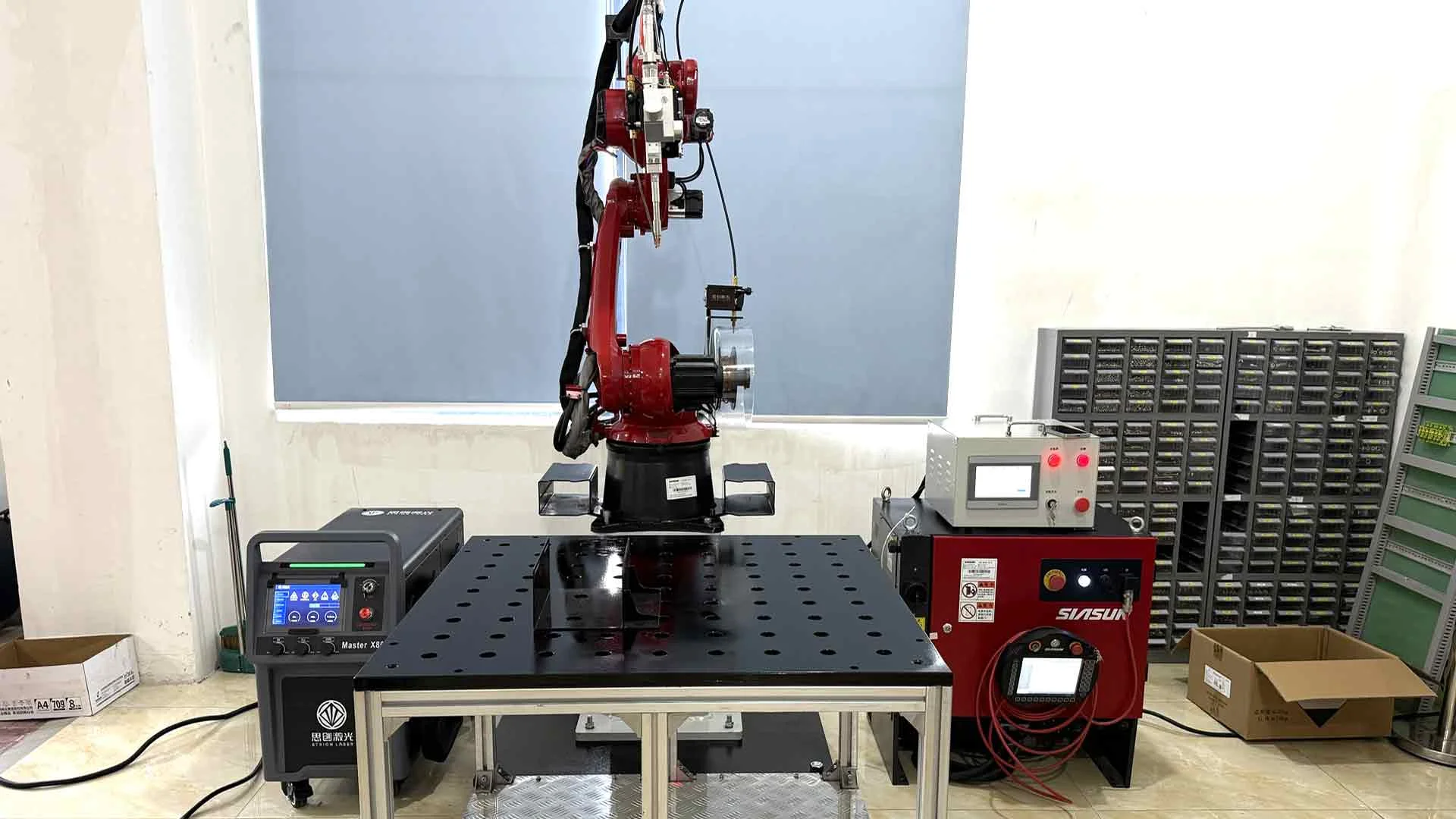

Multiple interfaces and protocols, 5G + AI cloud upgrade ready, seamlessly compatible with industrial robots for flexible automation.
Industrial-Grade Quality

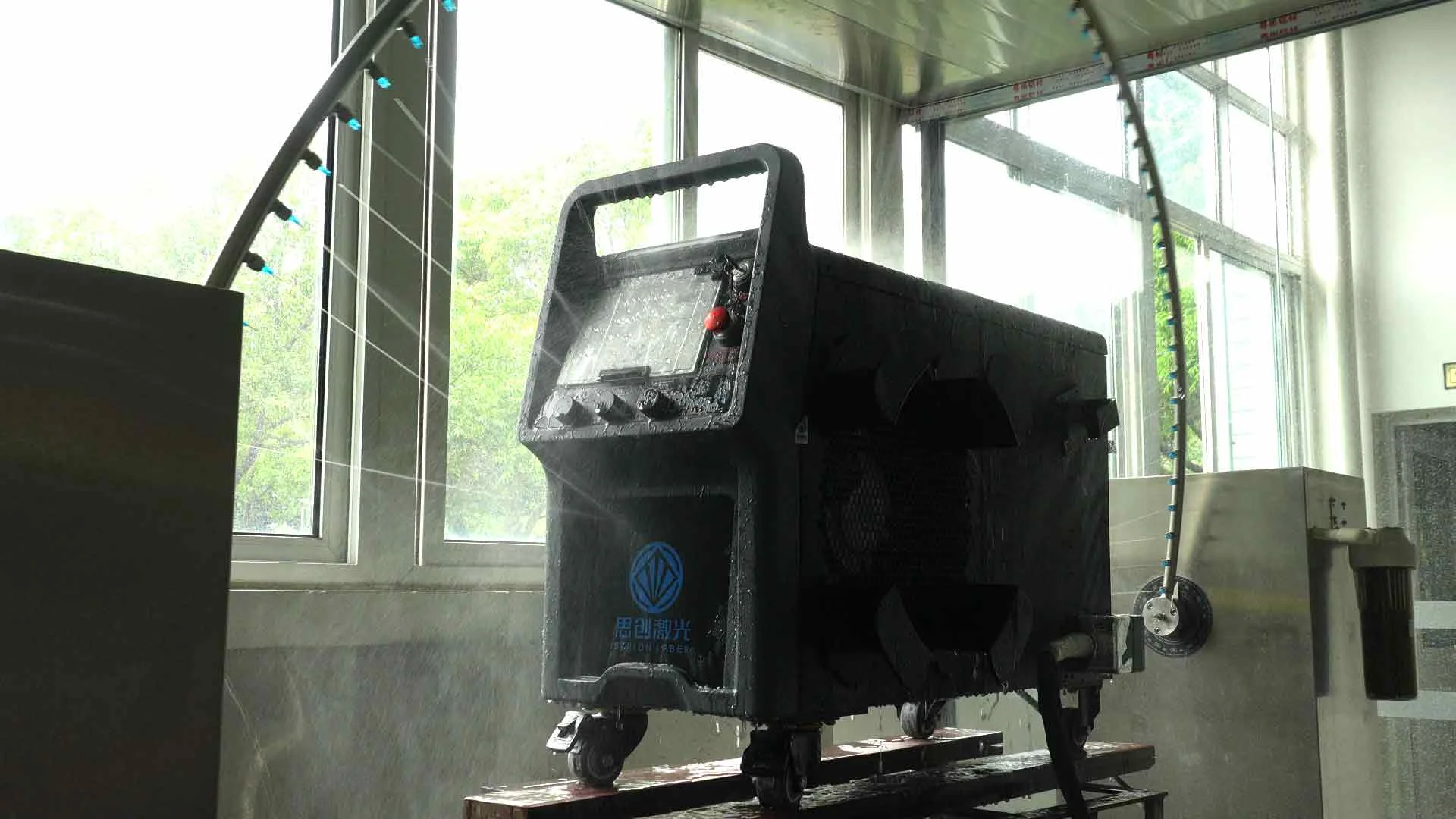

IP53 protection, vibration- and drop-resistant, shielded against high-frequency and metal dust, built to endure harsh industrial environments.
Smart Process Expert
Proprietary “MASTER” intelligent welding software, integrating AI-driven welding expertise to meet diverse customization needs.
Designed for industrial welding

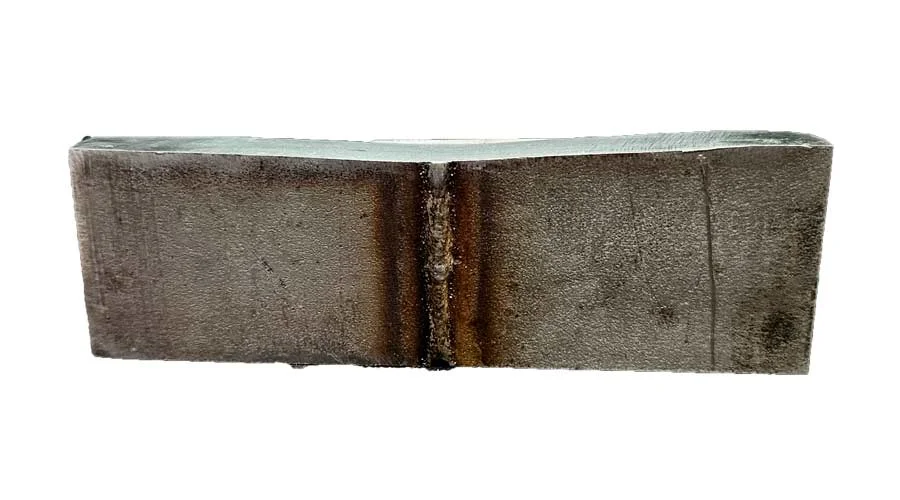

The Master X Series Laser Welder uses 25 μm small-core laser technology, achieving up to 10 mm weld depth and 8 mm weld width. Compact, lightweight, and built for efficient mobile industrial welding.
laser cleaning for rust removal
The integrated cleaning function ensures a smoother and safer process: no zebra patterns remain after cleaning, delivering a cleaner surface; non-contact laser cleaning avoids grinding, chemical use, or liquid waste, ensuring zero secondary pollution while protecting both the surface and the substrate. It effectively removes oxide layers, paint, oil, and rust from metal surfaces with precision and efficiency.
Beyond Welding, Precision Cutting
Effortlessly cutting materials from 0.5 mm to 15 mm thick, the Master Series is the ideal choice for handling metals of all types and thicknesses. Designed for precision and speed, it delivers clean, consistent, and professional welding and cutting results—whether for simple tasks or complex projects.
Boost Productivity with Automated Welding
The automation welding function maximizes productivity by using high-precision laser welding technology to handle repetitive tasks with consistency and efficiency. It frees skilled welders to focus on more complex applications, while its flexible system design enables easy operation without requiring robotics or programming experience.
Applications
The STR-MASTER Series Laser Welder delivers reliable performance across automotive, construction, machinery, and metal fabrication industries, combining user-friendly operation with enhanced thick-plate welding capability.
Frequently Asked Questions
master-series-handheld-laser-welding
What are the differences between the Master Series, Lite S Series, and STR-HW Series?
The Master Series delivers flagship performance with high power and stability for heavy-duty, thick plate welding. The Lite S Series offers lightweight, zero-barrier operation and portable design, making welding simple anytime, anywhere. The STR-HW Series is our classic, reliable line with balanced performance and broad applications, the trusted choice for general manufacturing and sheet metal processing.
How do I choose the right model for me?

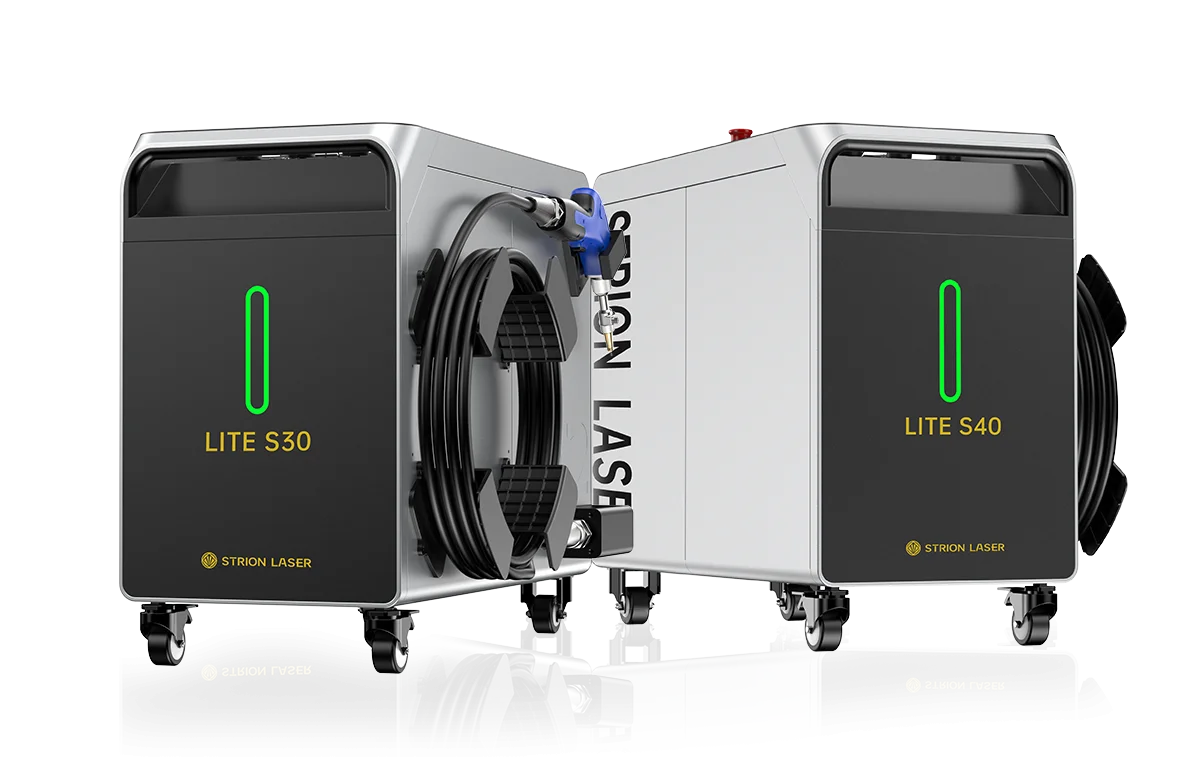

We generally recommend selecting a LITE-S Series model based on the material and thickness you need to weld:
- Aluminum: 1–2 mm → LITE S30 | 2–3 mm → LITE S40
- Stainless Steel: 1–3 mm → LITE S30 | 3–4 mm → LITE S40
- Galvanized Steel: 1–2 mm → LITE S30 | 2–3 mm → LITE S40
- Carbon Steel: 1–3 mm → LITE S30 | 3–4 mm → LITE S40
Note: These are general recommendations. For precise guidance, please contact our service team.
How can I purchase a Master-X Series laser welding machine?
Please contact us, and a Master-X Series specialist will get back to you promptly. If you’d like to reach our experts right away, you can email str@strlaser.com
or call +028-85812068.
WHAT KIND OF SERVICE SYSTEM DOES STRONGEST LASER HAVE?
On the one hand, we provide complete product installation teaching video in the early stage, which is systematic.
onthe otherhand. we have setup localzed senice sitesin many counties,wewilewen providetechnical training for you, and we wllaiso provide some maintenance spare parts,such as coper for free after bulk purchase.
What brand of laser source does the Master-X Series use?
The Master-X Series is equipped with a self-developed Strion Laser source. Strion is one of the few manufacturers worldwide with independent R&D capabilities in laser technology, ensuring both reliability and performance.
How much does the Master-X Series handheld welding machine cost?
Prices vary by model and configuration. For a detailed quotation and customized solutions, please contact our sales team directly.
